Galvanised Steel Recessed Covers

Discreet appearance, Dependable performance

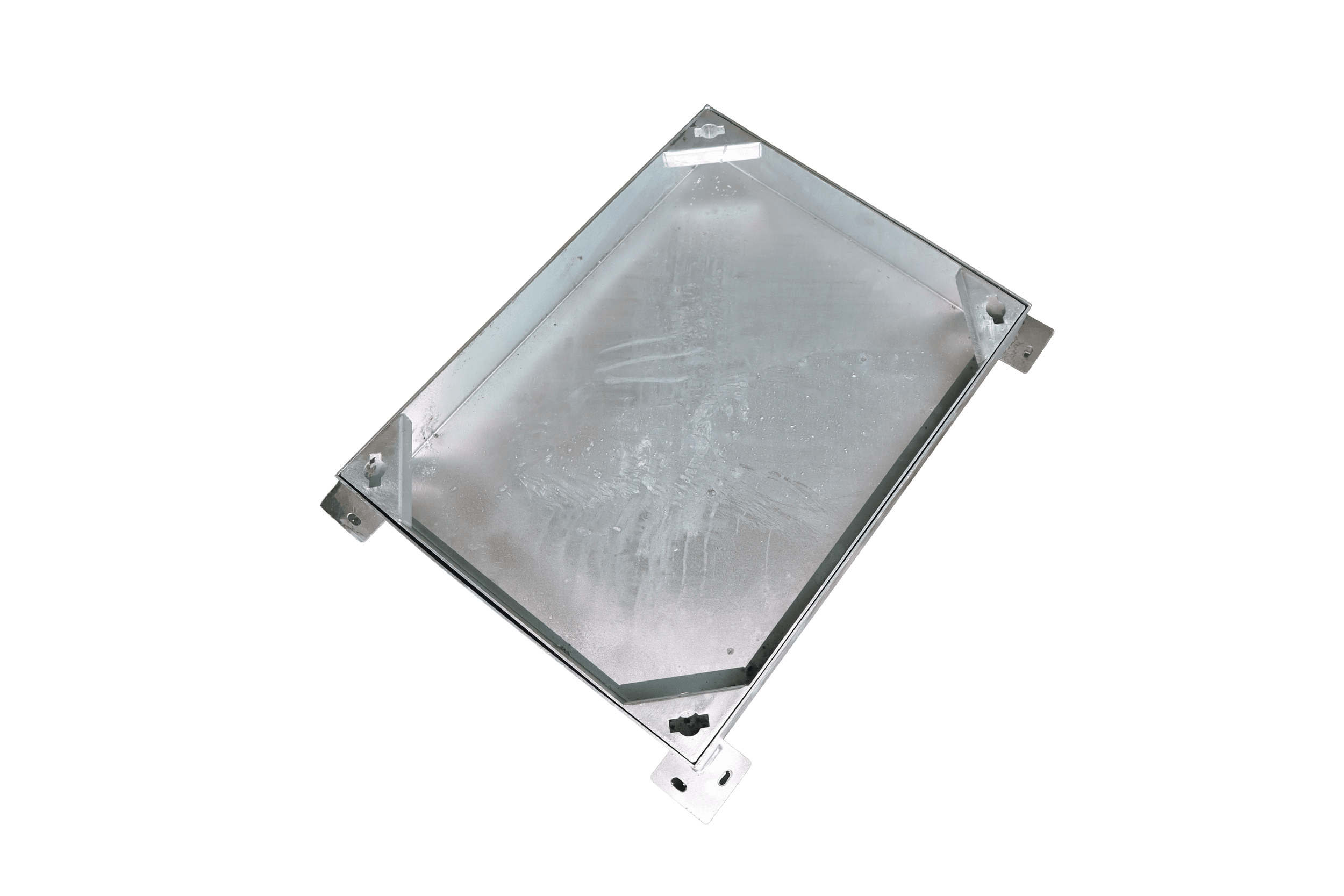

IMG_4808

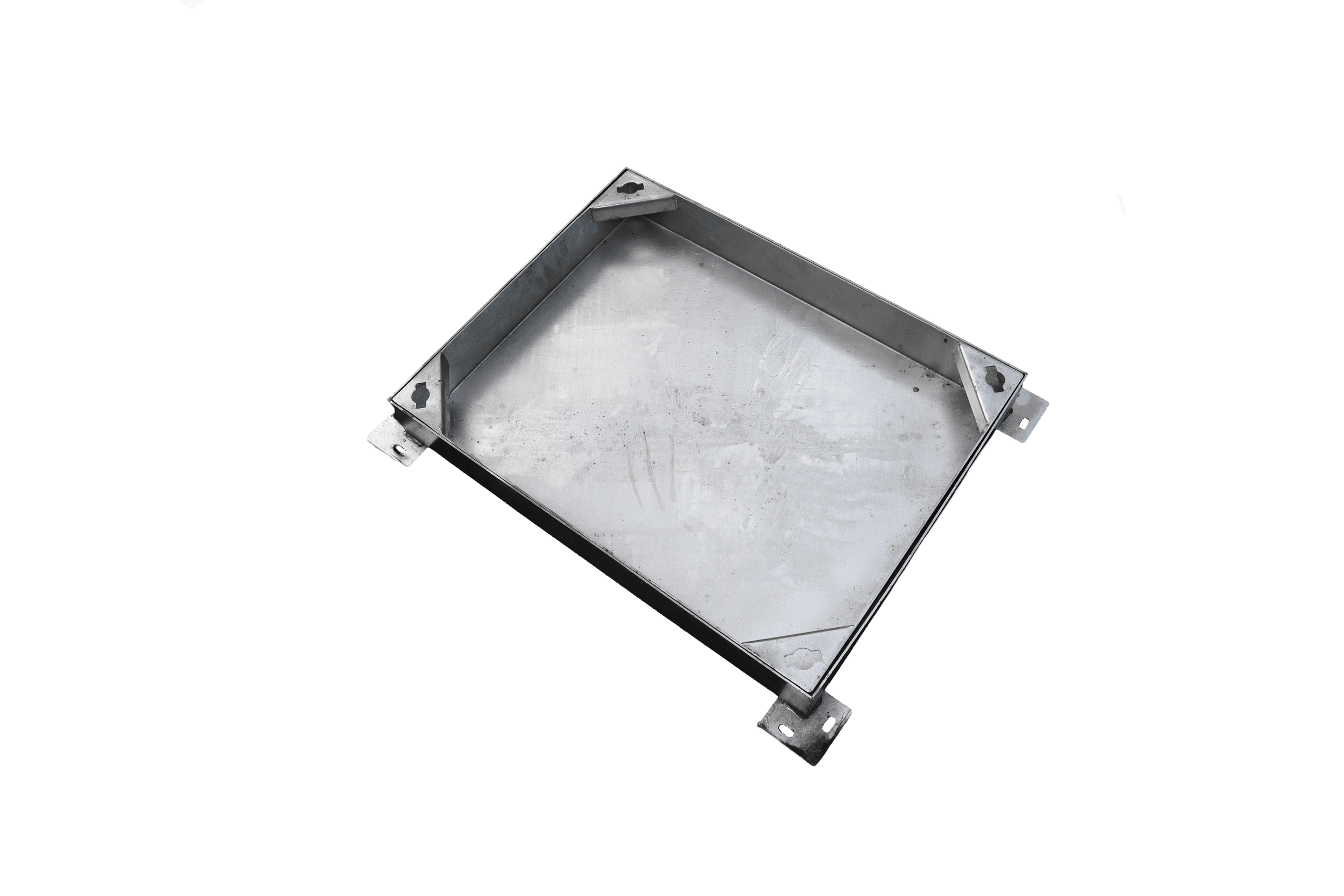

IMG_4813

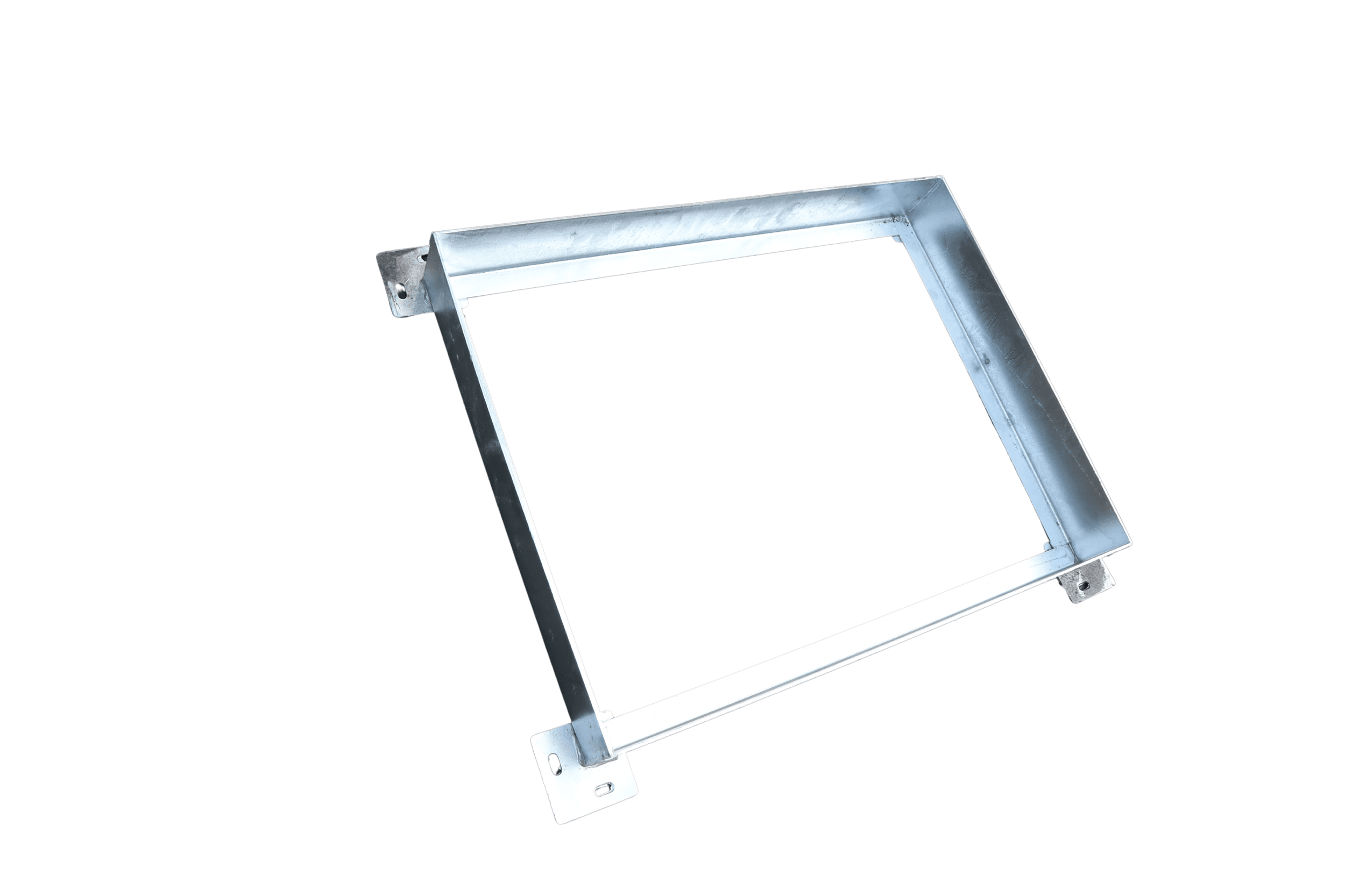

IMG_4817

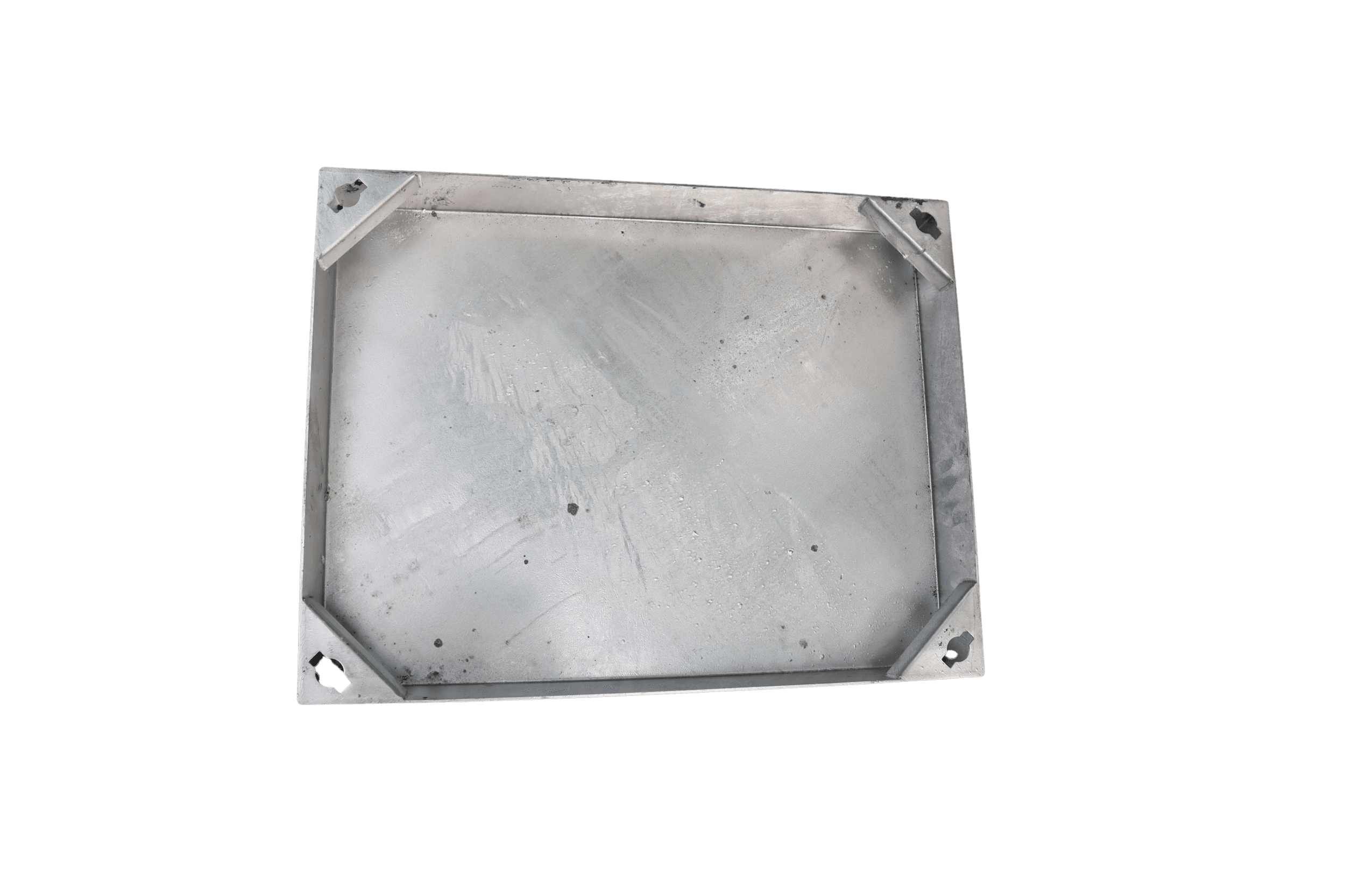

IMG_4800
Previous
Next

The practical solution for paved surfaces

Key Features & Benefits

Load rated to 10T (Gross Plated Weight)

Suitable for driveways and pedestrian applications, offering dependable performance under vehicle loading.

Galvanised steel construction

Hot-dip galvanised for enhanced strength, corrosion resistance, long-term durability.         (Certified to BS EN ISO 1461)

Multiple size options

Available in a range of clear opening sizes to suit different installation requirements.

80mm & 100mm recess depths

Flexible depth options to accommodate various paving and slab specifications.

4 keyway lifting points

Incorporated into each cover for straightforward removal once filled.

Quality as standard

Manufactured to deliver consistent reliability, performance and finish across the range.

Available Sizes & Codes

Clear Opening B C Tray Depth Overall Depth Code
300 x 300mm 360 x 360mm 440 x 440mm 80mm 90mm 375512
*300mm dia 360 x 360mm 440 x 440mm 80mm 90mm 379046
300 x 300mm 360 x 360mm 440 x 440mm 100mm 110mm 375472
*300mm dia 360 x 360mm 440 x 440mm 100mm 110mm 379048
450 x 450mm 510 x 510mm 590 x 590mm 80mm 90mm 375511
*450mm dia 510 x 510mm 590 x 590mm 80mm 90mm 379047
450 x 450mm 510 x 510mm 590 x 590mm 100mm 110mm 375471
*450mm dia 510 x 510mm 590 x 590mm 100mm 110mm 379049
600 x 450mm 660 x 510mm 740 x 590mm 80mm 90mm 375510
600 x 450mm 660 x 510mm 740 x 590mm 100mm 110mm 375470
600 x 600mm 660 x 660mm 740 x 740mm 80mm 90mm 375509
600 x 600mm 660 x 660mm 740 x 740mm 100mm 110mm 375429
Datasheet

ORDER TODAY

For technical information, specifications or a quotation, contact our team today.

Call: +44 (0)121 521 2503

Email: utilitysales@thomasdudley.co.uk

Our full range is stocked, wrapped and prepared for rapid despatch, helping you keep projects moving without delay.
